Product Description
Highlights
-
16x16 mounting holes with a compact design
-
Built-in TCXO ELRS receiver
-

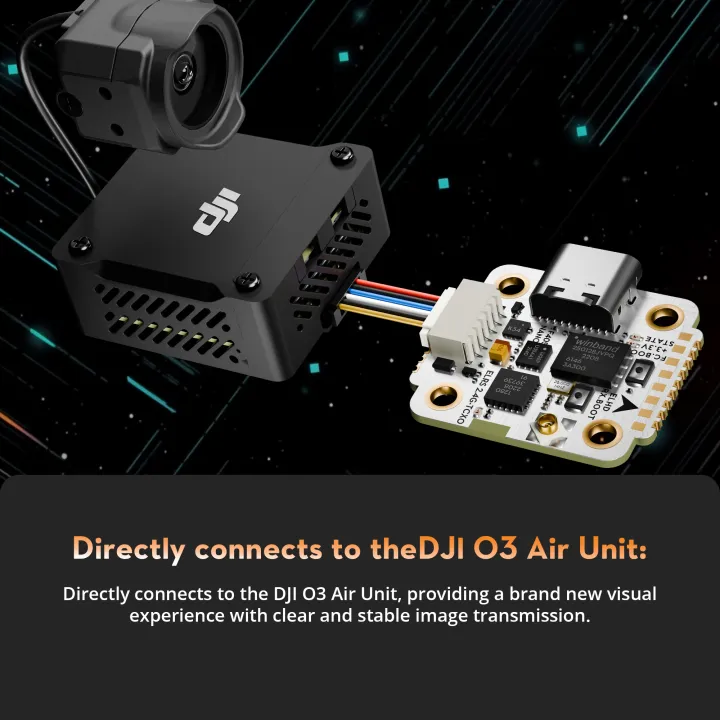

Direct plug-in for DJI O3\O4 Air Unit
-

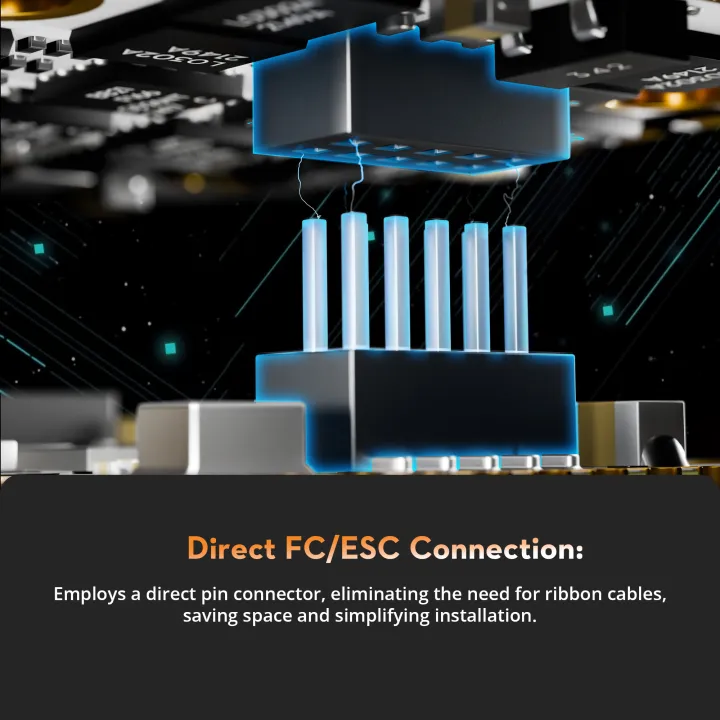

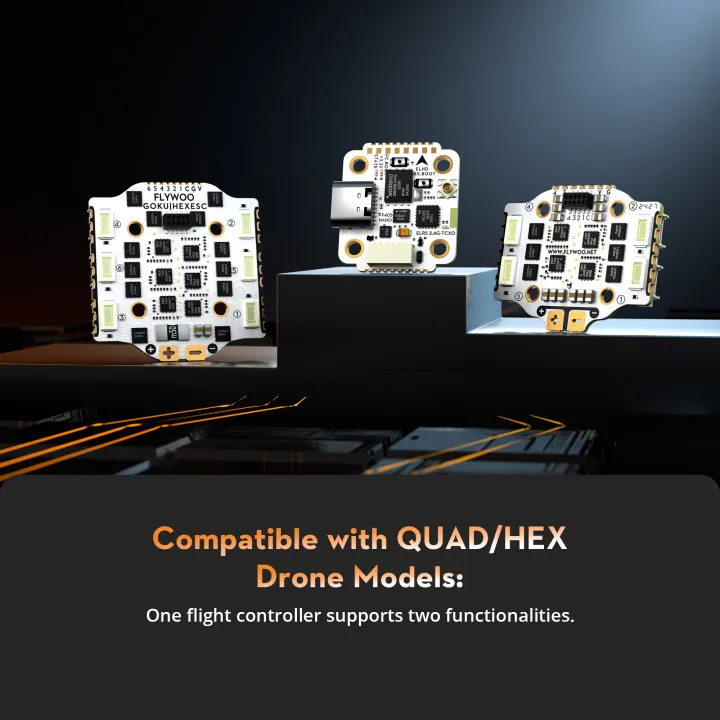

FC/ESC pin header interface, compatible with QUAD/HEX
-

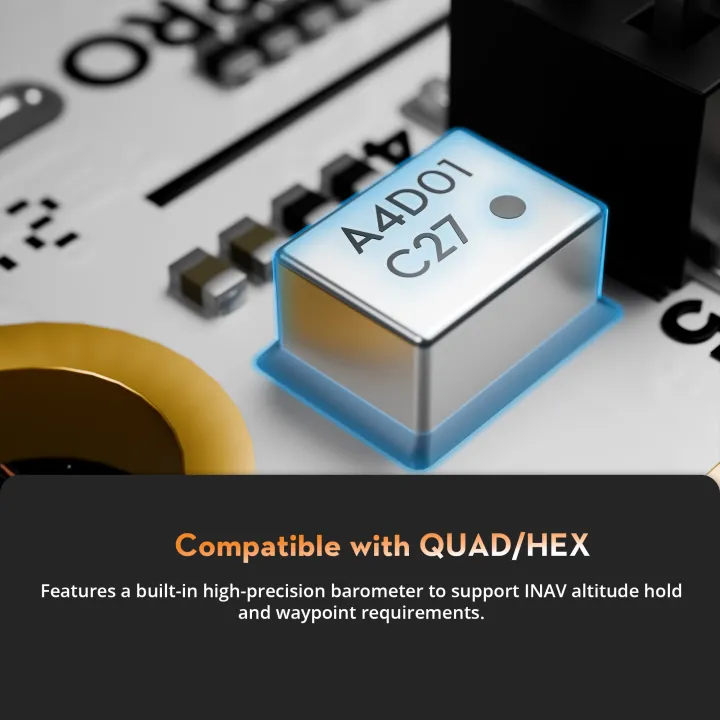

Built-in barometer
-

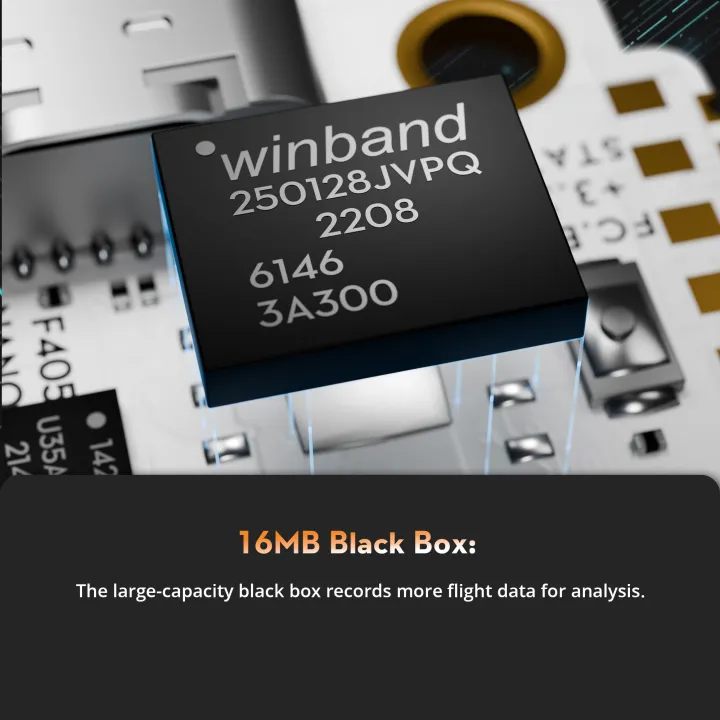

Equipped with a 16MB black box
-

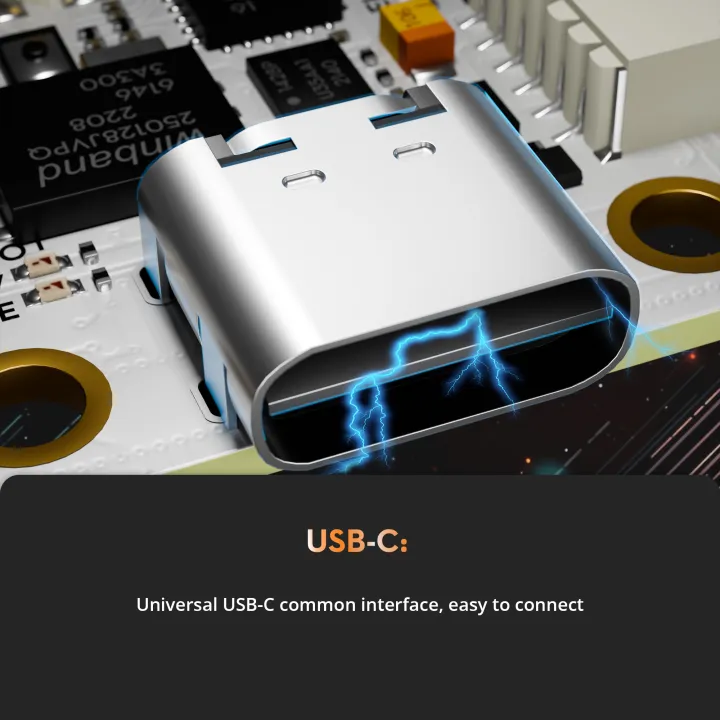

Universal USB-C interface
Specifications
|
Product Name
|

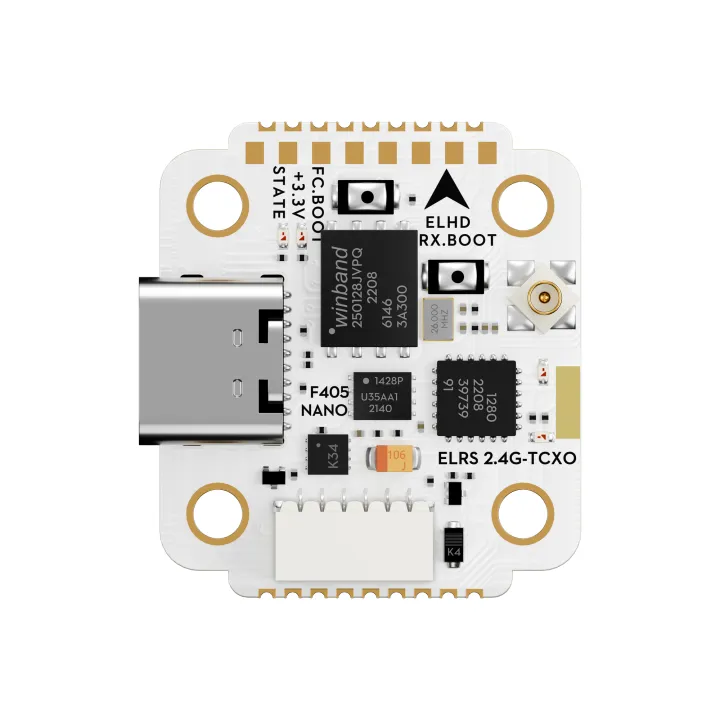

Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4g 16x16
|
|
MCU
|
STM32F405 BGA |
|
GYRO:
|
ICM-42688P(SPI) |
|
OSD
|
NO
|
|
Barometer
|
DP310 |
|
Black Box
|
16MB |
| USB Port Type | Type-C |
| IMU(Gyro) | ICM42688P |
|
UARTS
|
(1,2,3,4,5,6) |
|
Input Voltage
|
7.4V - 24V / 2 - 6S lipo |
|
BEC
|
5V 2A / 3.3V 0.5A |
|

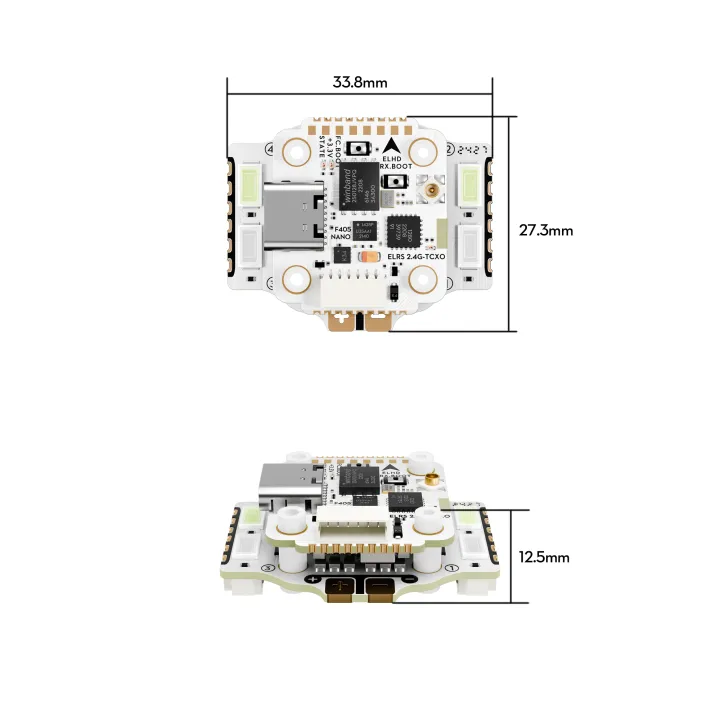

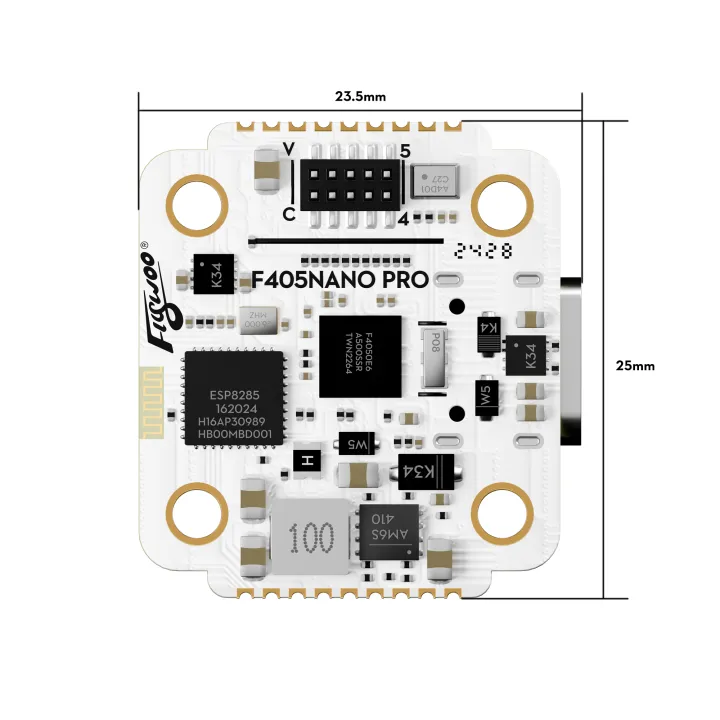

Size
|
25mm x 23mm x 8mm |
|
Hole Position
|
M2 16X16mm |
|

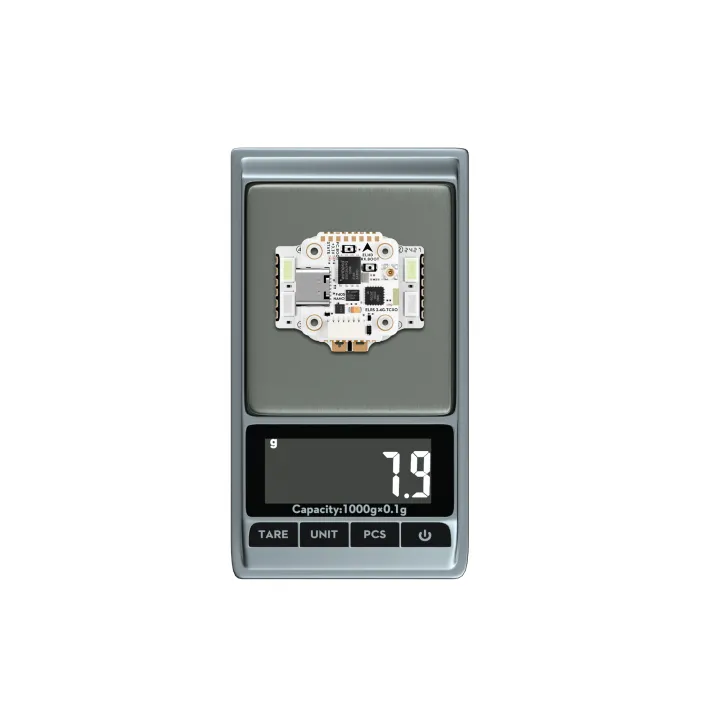

Weight
|
3g (FC), 7.8g (FC+20A), 9.4g (FC+20AHEX), 6.5g (FC+35A) |
|

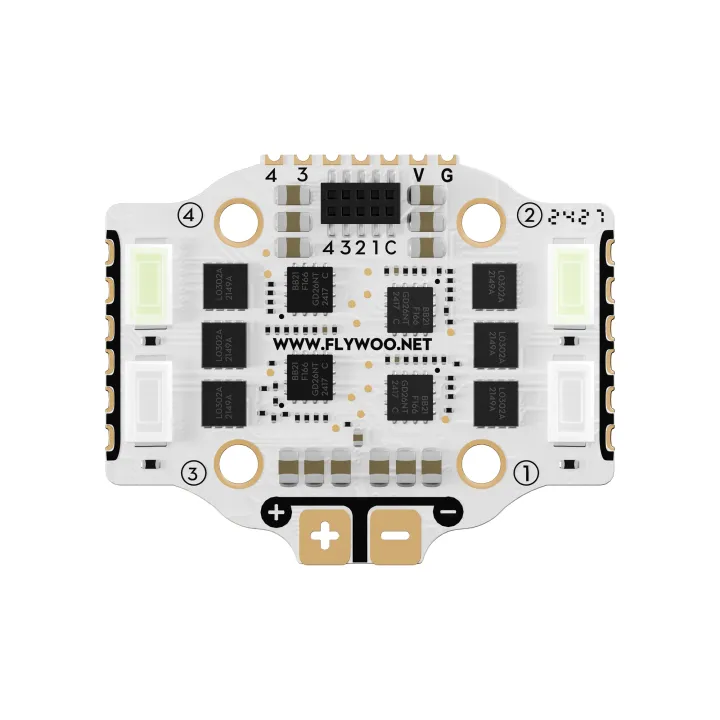

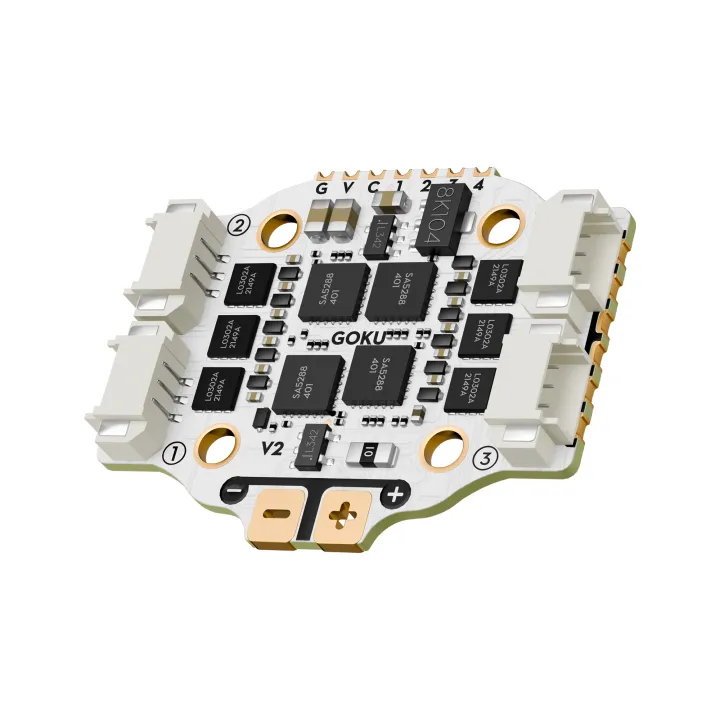

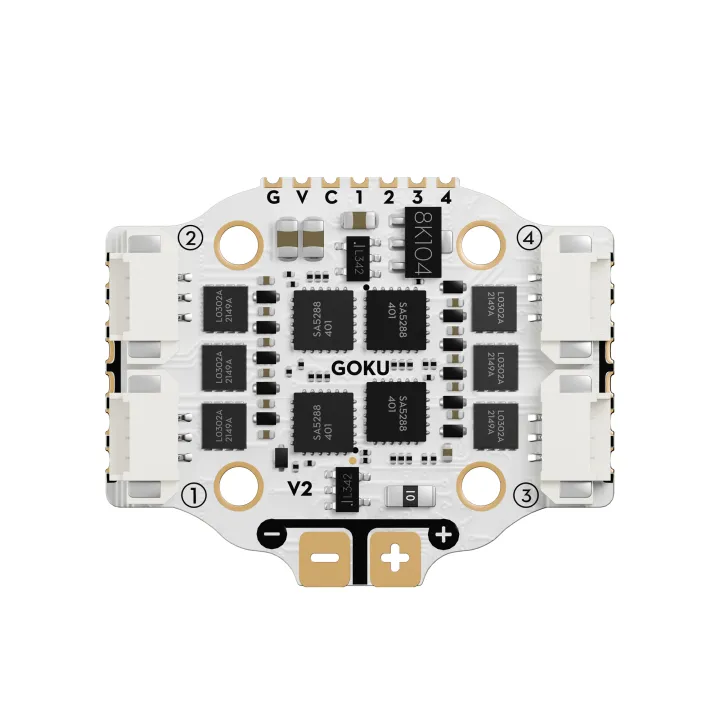

20A ESC (QUAD) Version
|
GOKU BS 20A ESC w/ LED V3 16x16
|
| ESC MCU | BB21F16G |
| POWER LED | YES |
| Continuous current | 20A |
| Input | 2-4s lipo |
| Supports |
PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
|

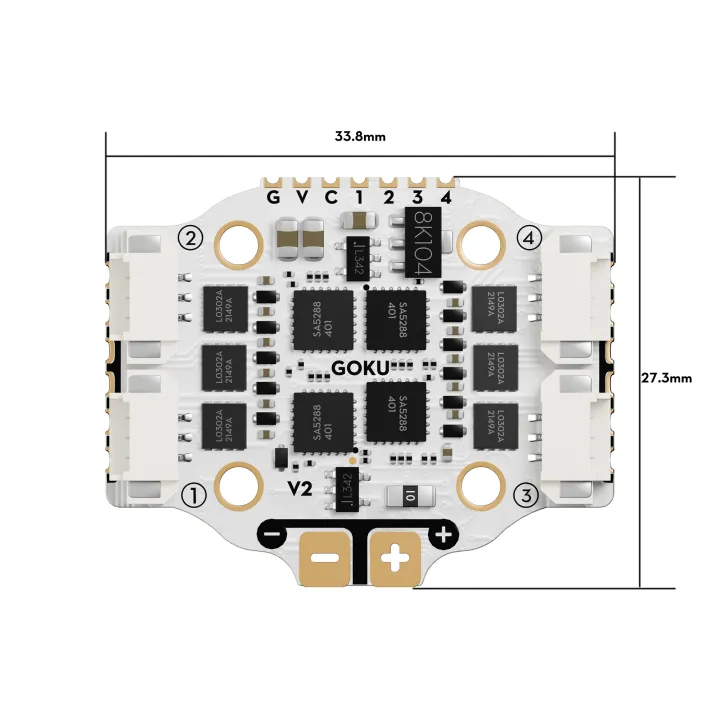

| Size | 27×33mm board,16mm mounting holes (M2) |

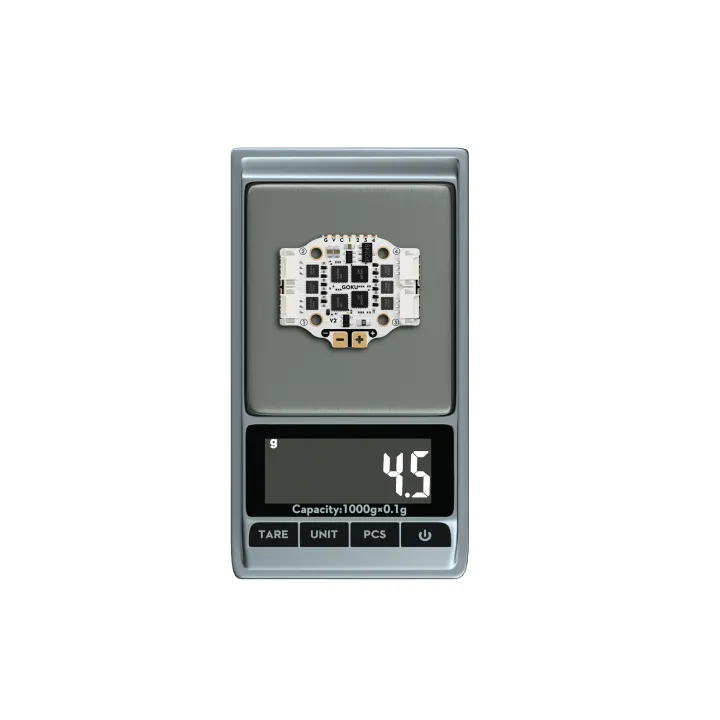

| Weight | 4.5g |
In the box
