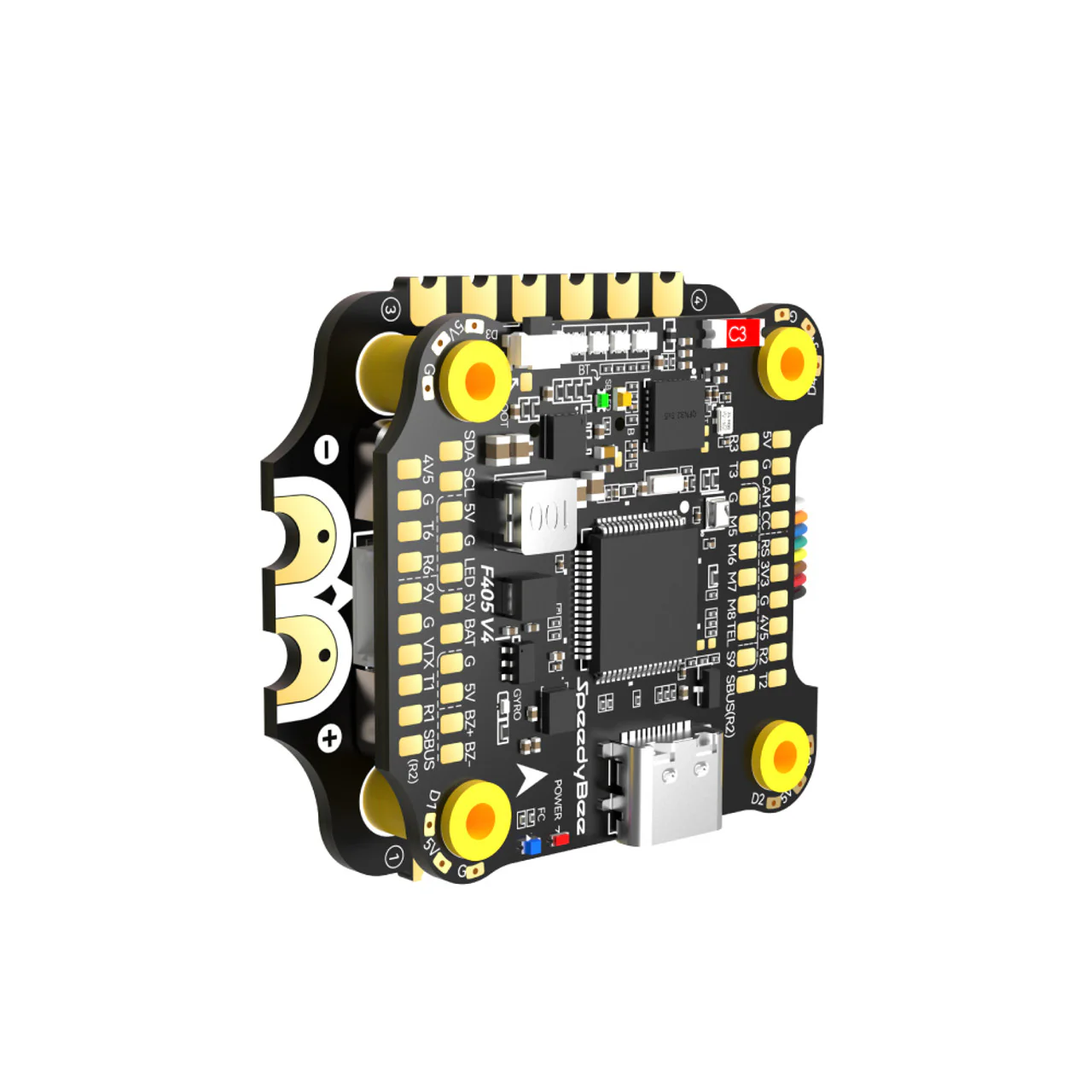

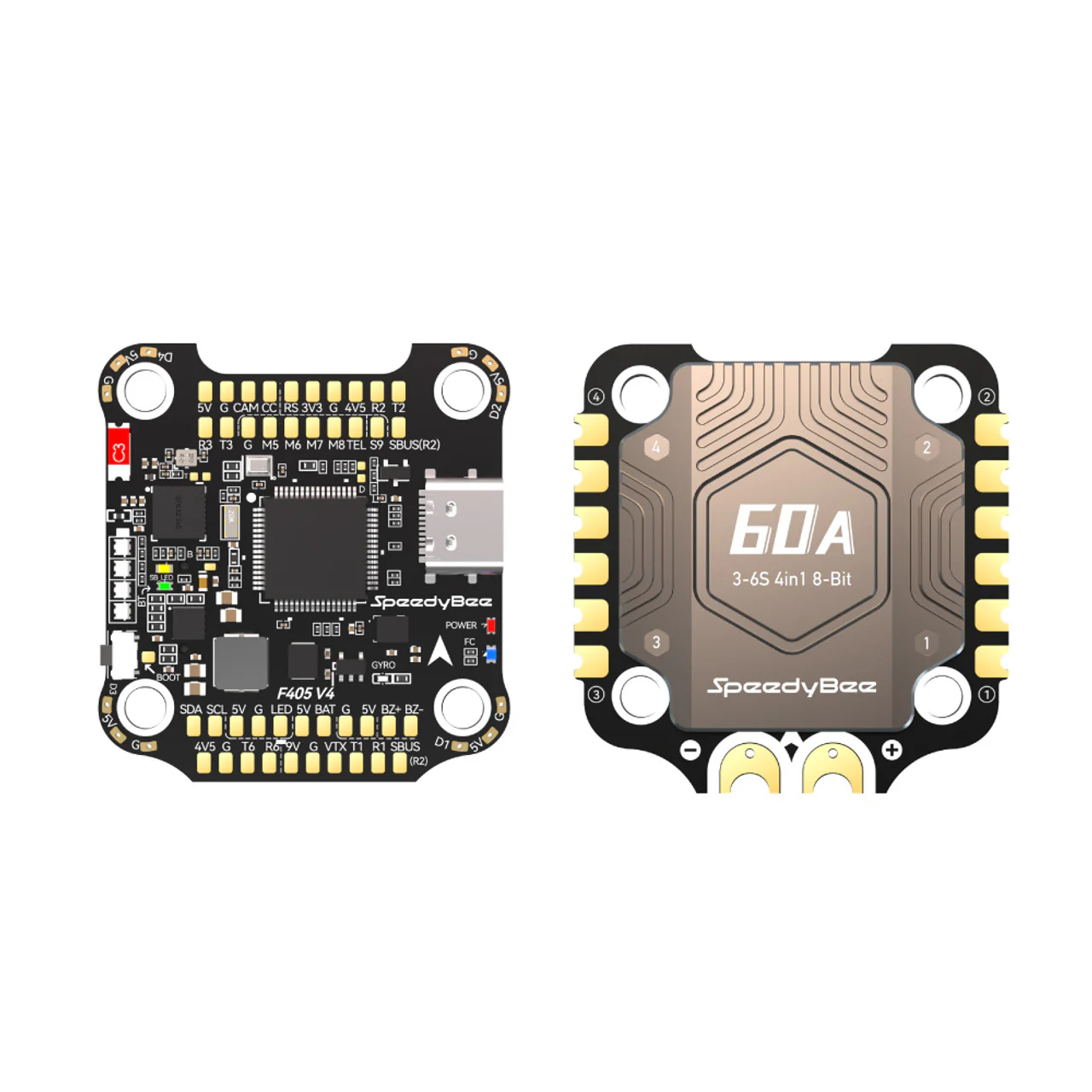

SpeedyBee F405 V4 BLS 60A 30x30 FC & ESC Stack – High-Performance 3-6S Flight Controller and ESC Combo

The SpeedyBee F405 V4 BLS 60A 30x30 FC & ESC Stack is a high-performance flight controller and electronic speed controller combo, designed to deliver reliable and efficient power to your FPV drone's motors. With its robust construction and advanced features, this stack ensures smooth flight characteristics for both freestyle and racing enthusiasts.

Key Features:

• Integrated Design:
  Combines a flight controller and 60A ESC into a single unit, simplifying installation and reducing weight.

• High-Performance Components:
  Equipped with an STM32F405 MCU and ICM-42688P gyro, offering precise flight control and stability.

• Versatile Power Support:
  Compatible with 3-6S LiPo batteries, catering to a wide range of drone configurations.

• Enhanced Connectivity:
  Features Bluetooth BLE 2.0, allowing for wireless firmware updates and easy configuration via the SpeedyBee app.

• DJI Air Unit Compatibility:
  Supports direct connection to DJI O3, RunCam Link, and Caddx Vista units without altering wire configurations.

• Comprehensive BEC Outputs:
  Provides multiple voltage outputs, including 5V@3A and 9V@3A, to power various peripherals.

• Durable Construction:
  Includes an aluminum heat sink for efficient heat dissipation and protection of sensitive components.

Specifications:

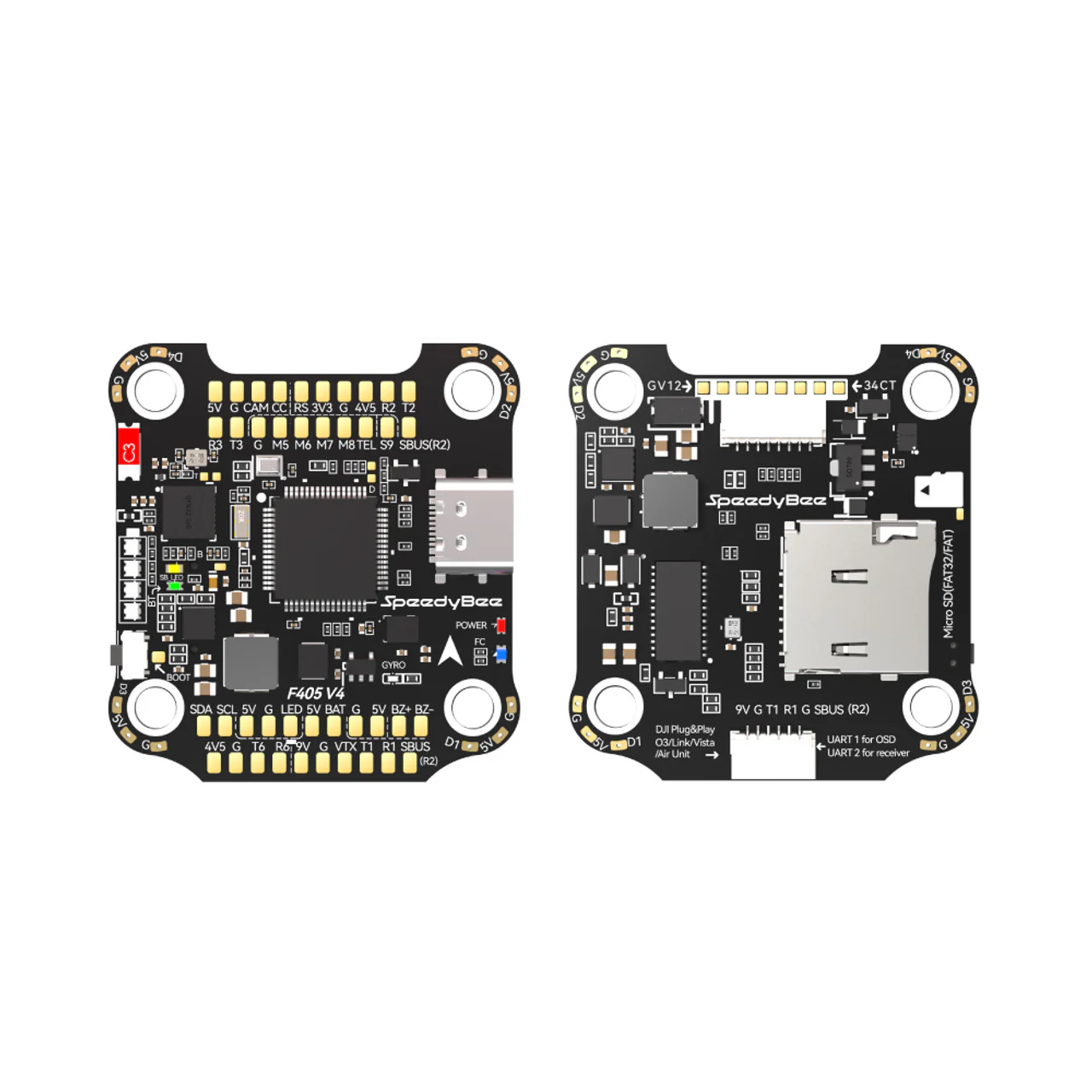

Flight Controller:

• MCU:
  STM32F405

• Gyro:
  ICM-42688P

• USB Port:
  Type-C

• Barometer:
  Built-in

• OSD:
  Supported

• Bluetooth BLE:
  Supported, Bluetooth speed enhancement - 2.0

• Wireless Firmware Update:
  Supported (no need to press physical BOOT button)

• BlackBox Memory:
  4GB

• Input Voltage:
  3S-6S LiPo battery

• BEC Outputs:

  • 5V Output: 3A
  • 9V Output: 3A

• UART Ports:
  6 full-function serial ports

• I2C Support:
  Supported

• LED Pads:
  Supported, used to control WS2812 LED lights

• Buzzer Pads:
  Supported, BZ+ and BZ- pads

• Boot Button:
  Supported, press and hold while powering on to enter DFU mode for firmware recovery

• Firmware Compatibility:
  BetaFlight (Default), INAV

• Mounting:
  30.5 x 30.5mm, 4mm hole diameter

• Dimensions:
  41.6mm (length) x 39.4mm (width) x 7.8mm (height)

• Weight:
  10.5g

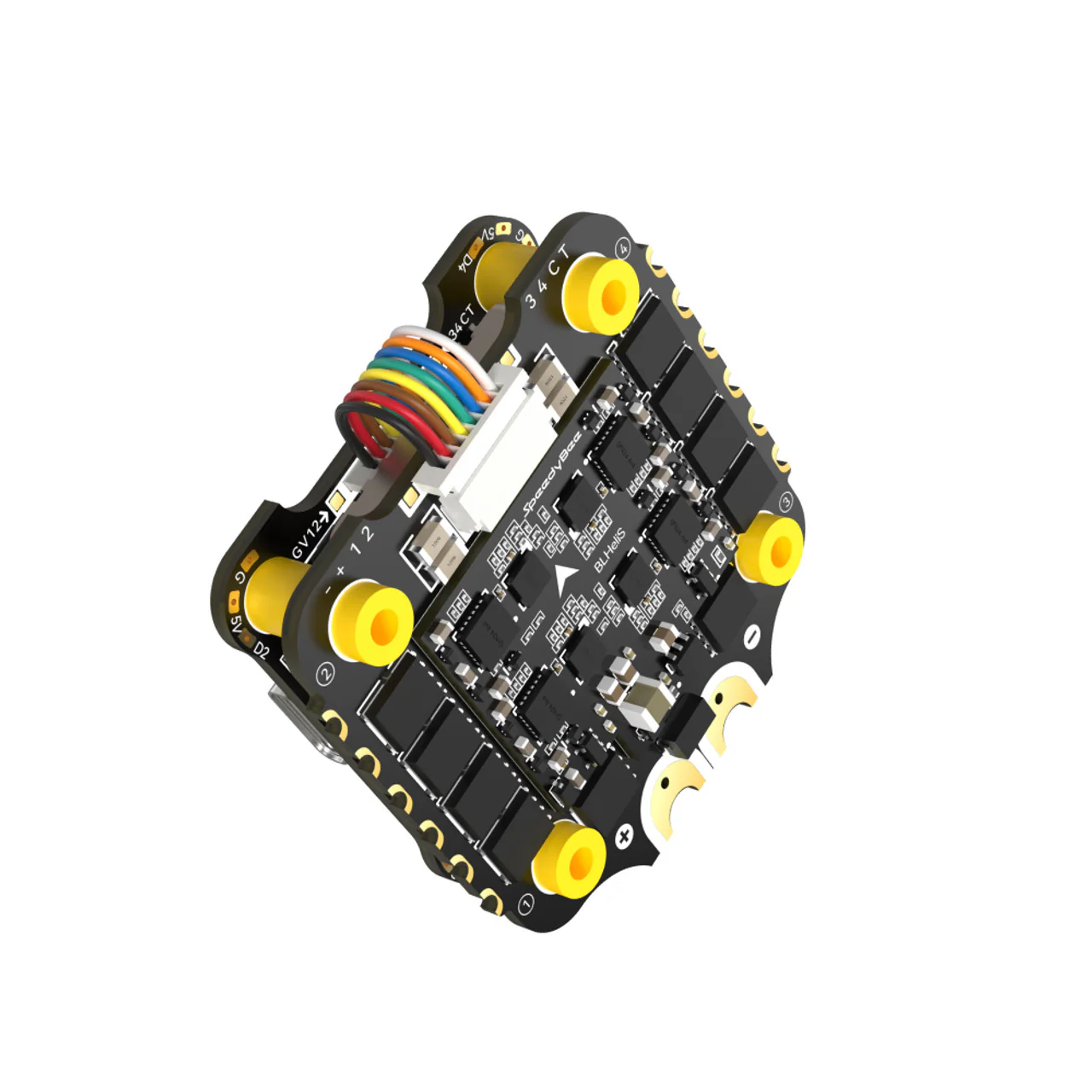

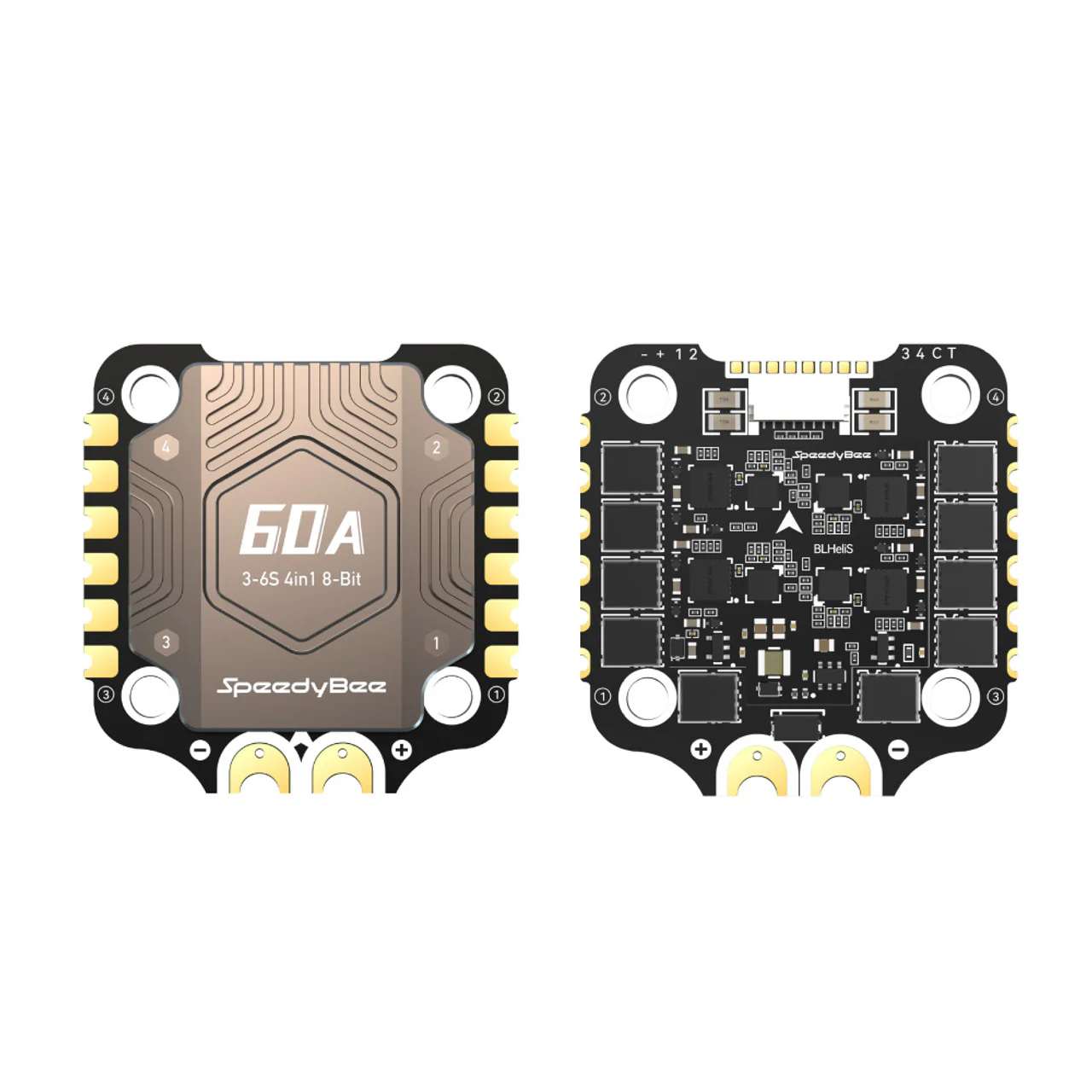

ESC:

• Input Voltage:
  3-6S LiPo battery

• Continuous Current:
  60A

• Burst Current:
  70A (10s)

• ESC Protocol:
  Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.

• Output Voltage:
  VBAT battery voltage (used to power the flight controller)

• Current Sensor:
  Supported (Scale = 400, Offset = 0)

• Firmware:
  BLHeli_S J-H-50

• Mounting:
  30.5 x 30.5mm, 4mm hole diameter

• Dimensions:
  45.6mm (length) x 44mm (width) x 8mm (height)

• Weight:
  23.5g

Package Includes:

• 1x SpeedyBee F405 V4 Flight Controller
• 1x SpeedyBee BLS 60A 4-in-1 ESC
• 1x Set of soft mounts
• 1x Set of screws
• 1x Set of cables
• 1x XT60 with cable
• 1x Capacitor
• 1x External BEC
• 1x External USB-C connector
• 1x Power expansion board
• 1x Soldering practice board

Enhance your FPV drone's performance with the SpeedyBee F405 V4 BLS 60A 30x30 FC & ESC Stack, offering a compact design and advanced features for a superior flying experience.
